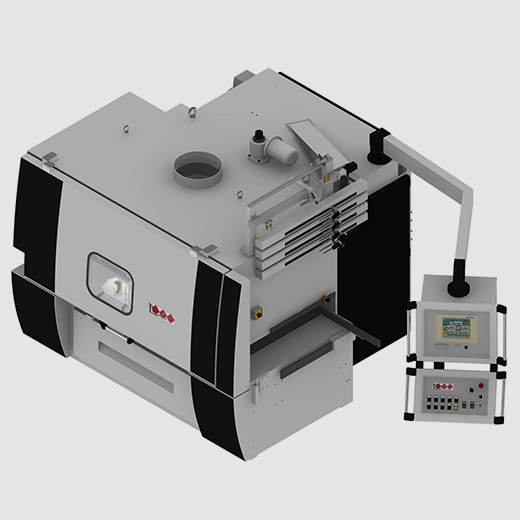

Multi-Rip SCA 650 RT 700
Technical details | CML Multilame SCA 650 RT 700 |
---|---|
Voltage | 400V / 50Hz |
Dust connection (main) | 300mm diameter – 30m/s – 7600Mc3/h |
Weight machine | 6500Kg |
Dimensions machine | Lunghezza 255cm Larghezza 245cm Altezza 200cm |
Blades motor power | Hp 60-75-100-125 / Kw 44-55-74-92 |
Feeding belt motor power | 3Kw |
Feeding belt speed | 0 a 50 mt/1″ (0÷80 mt/min) |
Group pressure motor power | 0.75Kw |
Max passage width planks | 1150mm |
Feed belt width | 700mm |
Blades shaft rotation | 3500 RPM |
Max. cutting thickness | 145mm (con lama da D.450mm) |
Min. cutting thickness | 20mm |
Min. planks length | 750mm (400mm per optional pezzi corti) |
Min. distance between fixed and moving blade | 16mm |
Max. distance between fixed and moving blade | 470mm (con 4 gruppi mobile installati) |
Max. distance between fixed and moving blade | 600mm (con un solo gruppo mobile installato) |
Max. distance between 2 moving blade | 484mm (con 4 gruppi mobile installati) |
Table working height from floor | 780mm |
Control board with 99 memory programme | manual or automatic control |
Position laser control | Red laser. Power 15mw up to 6mt rayon ligth |
Central guide device for belt | for glueing |
Sound camping material able to reduce noise | lower 15db |
Chain belt automatic lubrication |
Specifications are subject to changes.
